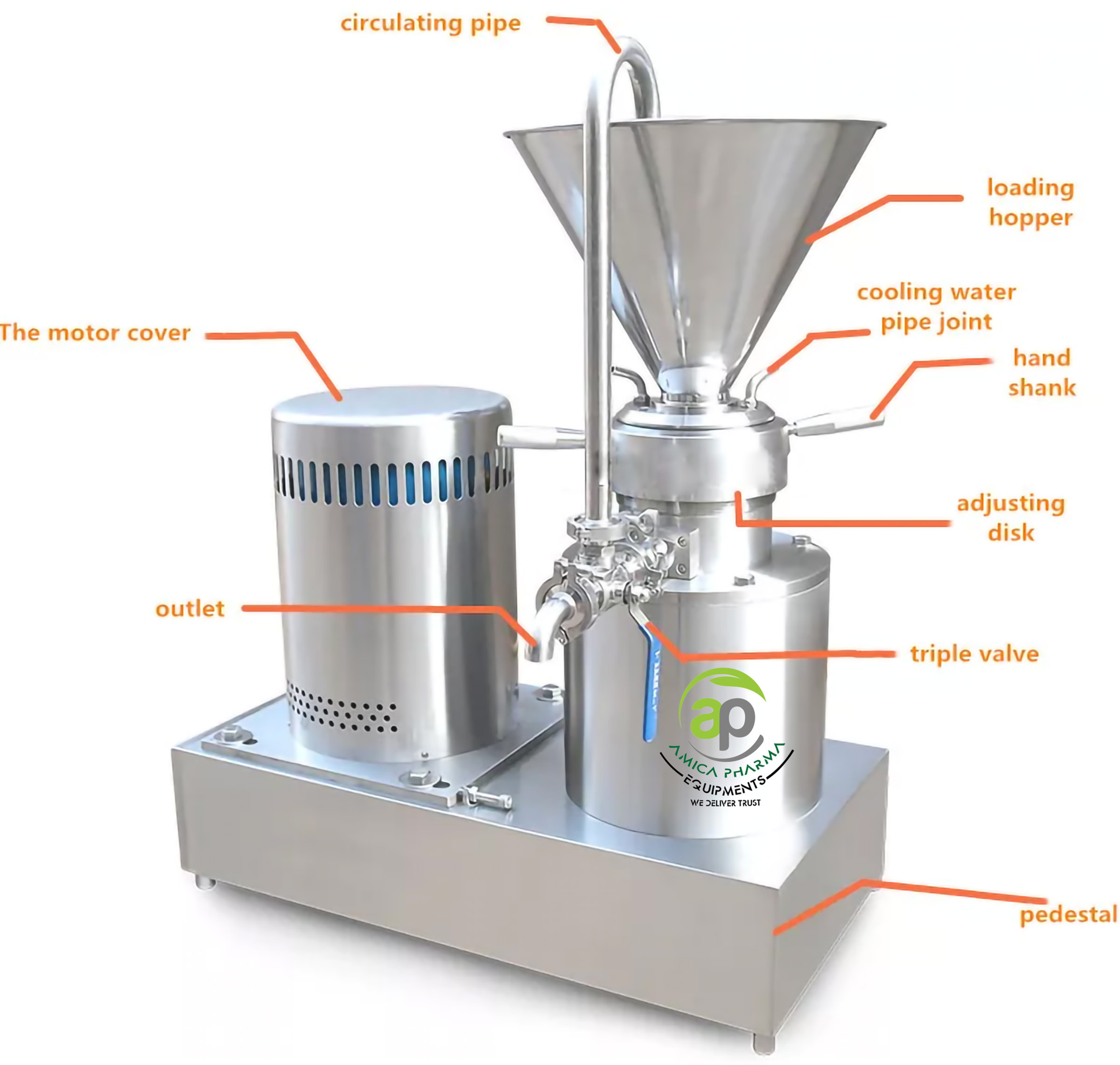

Colloid Mill.
The Colloid Mill can be used as an inline unit (horizontal execution) for continuous operation in a process line, or with a funnel & circulation line (vertical execution). Colloid Mill has a broad application range & is used in the Food, Pharmaceutical, Chemical & Cosmetic Industries & even in water treatment plants. We are a colloid mill manufacturer, supplier, and exporter according to ISI guidelines.
Product is fed to the operating area of rotor, having a speed of 3000 rpm by specially designed feed device. The product is processed by high shear, pressures & friction between the stator & rotor, & is also subjected to intensive vibration which exerts their force on it by means of pressing & releasing actions. due to the slightly deviating tapering of the milling surfaces of stator & rotor, the angular gap becomes narrower towards the discharge section. This processed product continuously leaves the mill through the drain pipe, if required, it can be recirculated.Capacity : 1 HP ,3 HP & 5 HP.
Salient features :
- All contact parts are made out of SS. 316 & Non Contact Part SS 304 Qlty.
- Coupling provided between motor shaft & rotor shaft for ease in maintenance.
- Baffles are provided in the shell.
- Three oil seals between the Motor & the processing chamber to prevent liquid going in the motor winding, Resulting in the burning of the motor.
- Modified design of semi concave teeth in rotor & stator reduces the motor HP & gives better performance in size reduction without damaging the product.
- Extended bearing housing specially designed to facilitate fine adjustment of bearing clearances or back lash to avoid metal to metal contact of rotor & stator. This unique design provides smooth & consistence all round performance & ong life of rotor & stator.
- Leak proof neoprene sealing device.
